"SHINWA BELT" Hard type

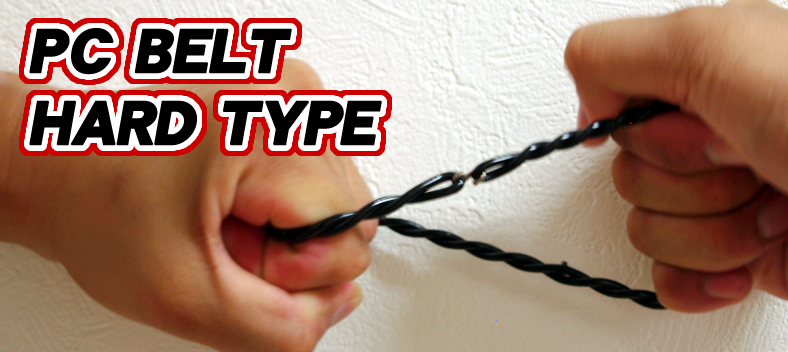

PC BELT HARD TYPE

WHAT'S HERD TYPE?

The principal ingredient of "Hard type SHINWA BELT" is Polycaprolactone.
There are strength, durability, and abrasion resistance advantages. "Hard type"can also be used for high load applications.

  • Improved of strength.
  • Improved abrasion resistance.





Comparison

  Normal Hard
SIZE 270mm
300mm
330mm		 270mm
300mm
330mm
Diameter 5mm 5mm
Hardness"A"Scale
ASTM D 2240		 85+/-3 92+/-3
PSI
ASTM D 412		 5,000 6,000
ASTM D 412 500 450
PSI@100%
PSI@300%
ASTM D 412		 775
1,700		 1,660
3,500
PLI Die"C"
ASTM D 624		 500 775
Component Polyurethane Polyurethane
Polycaprolactone
Adaptive point
  • Flexion rotation takes place
  • Using the oil field
  • Using the field bad environment such as long-term UV exposure
Stretch rate of 10%-20% strength
  • High load carrying
  • Using the oil field
  • Using the field bad environment such as long-term UV exposure
Stretch rate of 5%-10% strength
Properties High Stretch rate, high tensile strength.
Resists in ultraviolet rays and oil.
Not suitable for use where a high load and torque are needed.		 High Stretch rate, high tensile strength.
Resistant to ultraviolet rays and oil.
Use where a high load torque are needed.
Because belt is hard, not suitable where an extreme winding rotation is needed.

Manufacturers internal test results data

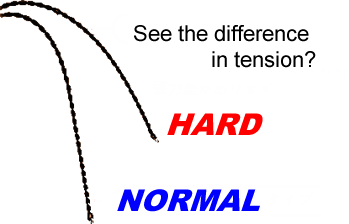

Comparison
